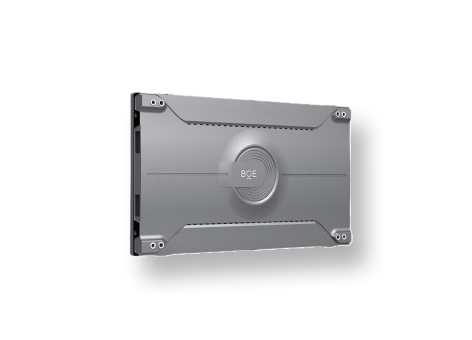

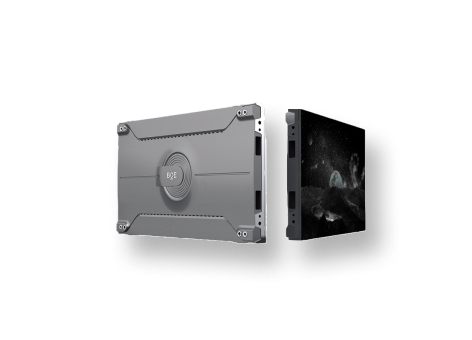

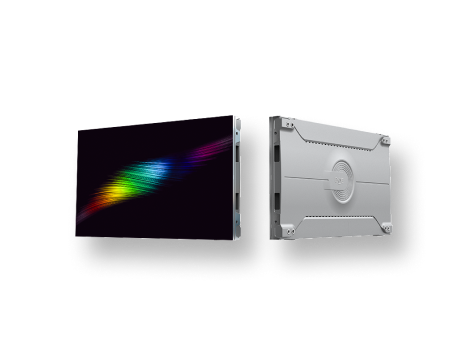

BOE MLED COB
Compared with traditional products equipped with front-loaded chips, BOE COB products with RGB full flip chip technology continue to improve the transmittance rate of the black film encapsulation program. It has more outstanding performance due to high protection and high reliability.
BOE MLED COB
-
BOE MLED COB
-
BOE MLED COB
Product Highlights
Cases
Product Parameters
Contact us
Product Highlights
RGB full flip
Reduce cost and improve quality
-
Thin Package
Thinner<250um
-
Black film package
Continue to improve picture quality
-
Common cathode drive
Better experience closer to the screen
-
High protection and high reliability
Reduce transport and maintenance risks
-
Power/Dual-Link solution
Major projects are guaranteed
-
Overseas qualification
Products are available for sale overseas
-
Curved splicing
Enable multiple scenarios

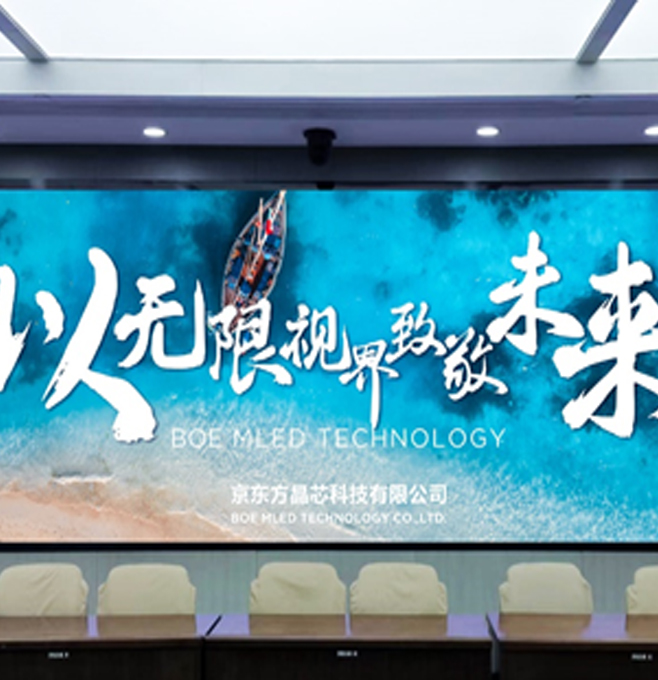

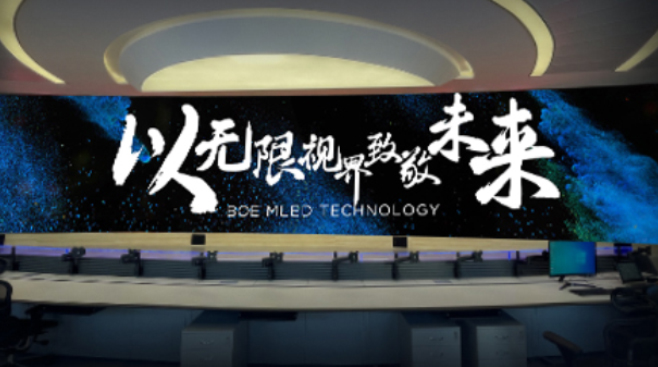

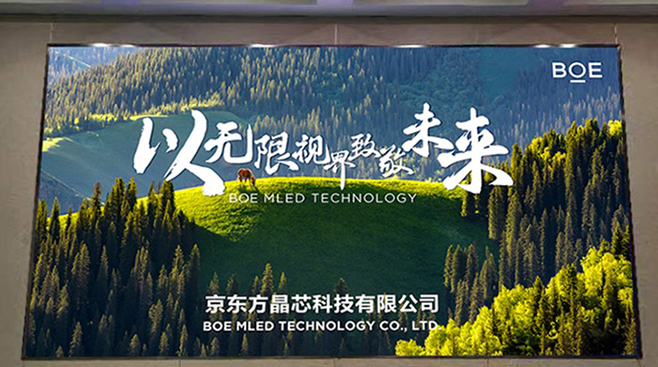

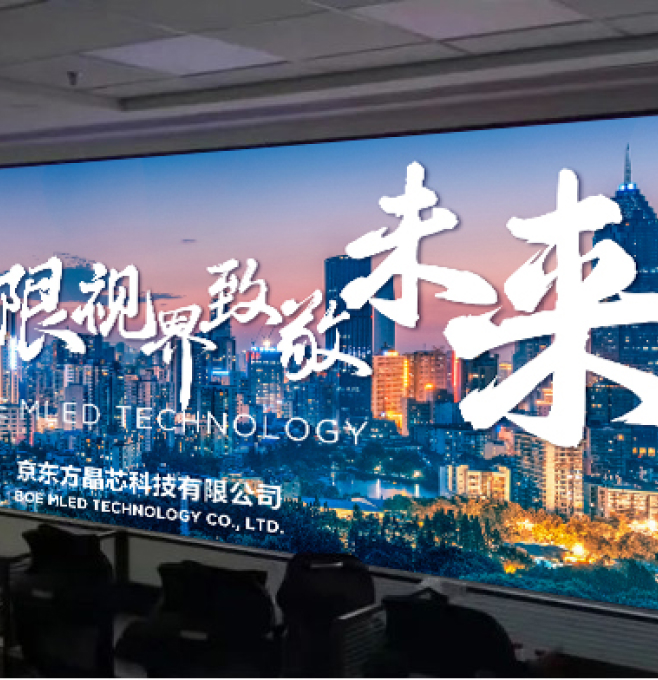

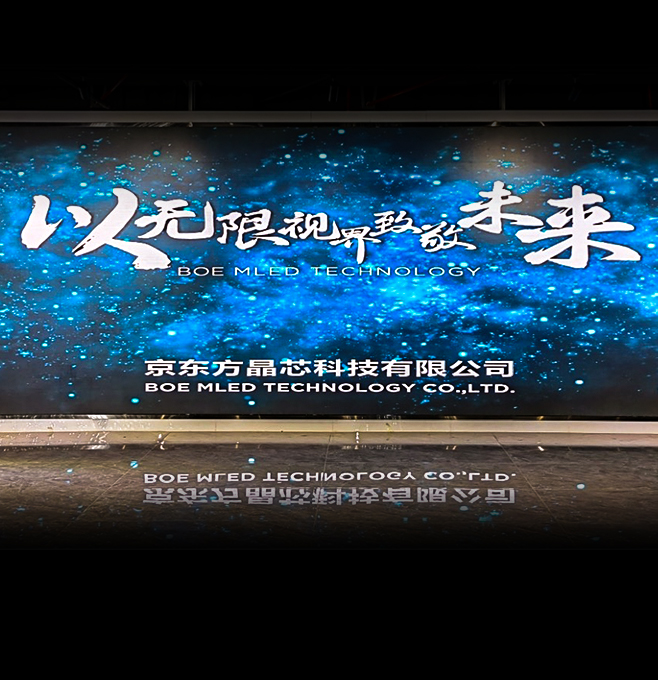

Cases
Product Parameters
| BYH-COB | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Specifications | BYH007G | BYH-B009A0 | BYH-B012A0 | BYH-B012A2/A3 | BYH-B015A1 | BYH009H | BYH012H | BYH015H | BYH019H | |
| Pitch | 0.78 | 0.9375 | 1.25 | 1.25 | 1.5625 | 0.9525 | 1.27 | 1.5875 | 1.905 | |
| Module Resolution（mm） | 300*337.5 | 300*337.5 | 300*337.5 | 150*168.75 | 150*168.75 | 304.8*342.9 | 304.8*342.9 | 304.8*342.9 | 304.8*342.9 | |
| Module Size（mm） | 600*337.5 | 600*337.5 | 600*337.5 | 600*337.5 | 600*337.5 | 609.6*342.9 | 609.6*342.9 | 609.6*342.9 | 609.6*342.9 | |
| Maintenance Mode | Front | |||||||||
| Cabinet Material | Die-Cast Aluminum | |||||||||
| Typical Life Value（hrs） | ≥100，000 | |||||||||
| Color Gamut | NTSC 110% | |||||||||
| Brightness（nit） | ≥600 | ≥1000 | ≥800 | ≥800 | ≥800 | ≥700 | ≥700 | ≥700 | ≥700 | |
| Refresh Rate（Hz） | 3840 | |||||||||
| Max. Power Consumption（W/m2） | 470 | 320 | 310 | 320 | 230 | 480 | 480 | 480 | 480 | |
* Please click on the bottom of the project for more product details.
